Damper, Vibration: Installation: Installation

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Vibration Damper & Bolt

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The crankshaft damper bolt is a left hand thread.

Install the vibration damper (2). Tighten bolt (1) to 100 N.m (74 ft. lbs.) plus an additional 125 degrees turn.

Fig 2: Crankshaft Timing Tool
Courtesy of CHRYSLER GROUP, LLC
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove Crankshaft Locking Tool (special tool #VM.10339, Tool, Crankshaft Timing) (1).

Fig 3: Engine Block Plug
Courtesy of CHRYSLER GROUP, LLC
Install engine block plug (1). Tighten 30 N.m (22 ft. lbs.).
Lower the vehicle.

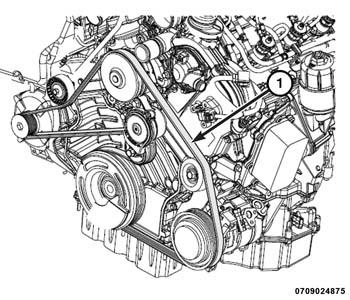

Fig 4: Identifying Belt Tensioner & Belt
Courtesy of CHRYSLER GROUP, LLC
Installed the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .

Fig 5: CAC Hose & EGR Air Flow Control Valve
Courtesy of CHRYSLER GROUP, LLC
Connect the Charge Air Cooler (CAC) hose (1) to the EGR air flow control valve (2).

Fig 6: Removing/Installing Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect negative battery cable.
