Case Assembly, Differential, Limited Slip Differential: Inspection: Inspection
WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Bottom out both side gears flat in the case pockets.NOTE:
Be sure that both gears are parallel and not tipped or cocked in any manner. If measurement is taken with the gears tipped or cocked, the reading will be inaccurate.

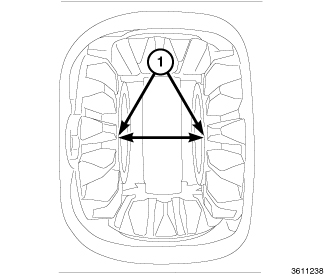

- Measure between the differential side gears (1).
- If the measurement is greater than 42.25mm (1.66 in.), the LSD Case assembly must be replaced.
