Seal, Axle Drive Shaft, Right: Installation: Installation

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

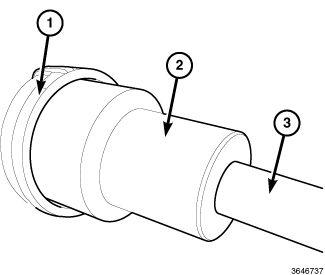

Fig 1: Installing Axle Shaft Seal

Courtesy of CHRYSLER GROUP, LLC

Wipe axle shaft tube bore clean.
Install new axle shaft seal with (special tool #10399, Installer, Seal) and (special tool #C-4171, Driver Handle, Universal) (1).

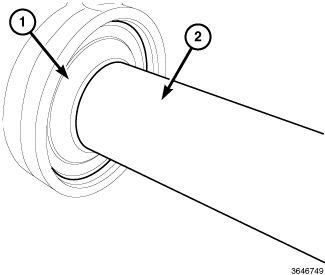

Fig 2: Installing Oil Slinger
Courtesy of CHRYSLER GROUP, LLC
Install new oil slinger (1) with (special tool #L-4507, Installer, Bearing) (2).

Fig 3: Identifying Snap Ring, O-Ring And Shaft
Courtesy of CHRYSLER GROUP, LLC
Install new o-ring (1) and snap ring (2) on axle shaft (3).
Install half shaft. Refer to SHAFT, AXLE, INSTALLATION .
Verify differential fluid level and add fluid if necessary.
