Bezel, Center Console: Removal: Removal

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Shifter Bezel Trim Ring

Courtesy of CHRYSLER GROUP, LLC

Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove shift bezel trim ring (1).

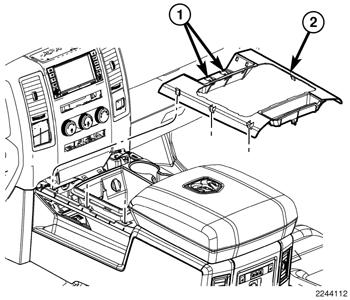

Fig 2: Shift Bezel
Courtesy of CHRYSLER GROUP, LLC
Remove the rubber mat and remove the screws (1).
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove shift bezel (1).
