Sensor, Air Suspension Temperature: Installation: Installation
WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
All pressurized air suspension components contain high pressure air (up to 220 psig). Use extreme caution when inspecting for leaks. Wear safety goggles and adequate protective clothing when inspecting or servicing the air suspension system. A sudden release of air under this amount of pressure can cause possible serious or fatal injury.
WARNING:
Support the vehicle by supplemental means before performing any work on the air suspension system to prevent the vehicle from changing height. Before any given component is to be serviced it must be deflated. Servicing the air suspension system without supplemental support, or with pressure in the specific component, can cause possible serious or fatal injury.

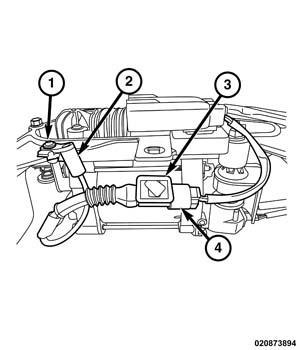

- Position the air suspension temperature sensor (2), install the retainer screw (1) and tighten to 4 N•m (35 in. lbs.).
- Connect the air suspension temperature sensor wiring harness electrical connector (4) and using a counter clock-wise motion attach connector clip (3) to ASU bracket.
- Install the Air Suspension stone shield.
- Install the RR wheel inner liner.
- Install the RR tire and wheel. Refer to WHEELS, STANDARD PROCEDURE .
- Perform the ASCM Verification Test. Refer to STANDARD PROCEDURE .
