Diagnostic Test

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
  1. TEST FOR INTERMITTENT CONDITION
    1. Turn the ignition on.
    2. With the scan tool, record and erase the DTCs.
    3. Try to operate the Passenger Window up and down several times.
    4. Wait 30 seconds.
    5. With the scan tool, read the DTCs.

      Does the scan tool display B1865-PASSENGER WINDOW POSITION SENSOR CIRCUIT PERFORMANCE?

      Yes

      • Go To  2

      No

      • The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  2. (Q302) PASSENGER WINDOW HALL SENSOR A SIGNAL SHORT TO GROUND

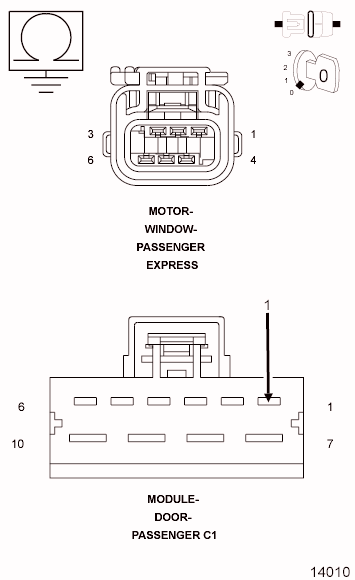

    Fig 1: Checking Passenger Window Hall Sensor A Signal Short To Ground
    GC0120311Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the Passenger Window Motor connector.
    3. Disconnect the Passenger Door Module C1 connector.
    4. Measure the resistance between Ground and the (Q302) Passenger Window Hall Sensor A Signal circuit.

      Is the resistance below 10, 000 Ohms?

      Yes

      • Repair the (Q302) Passenger Window Hall Sensor A signal circuit for a short to ground.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Go To  3
  3. (Q304) PASSENGER WINDOW HALL SENSOR B SIGNAL CIRCUIT SHORTED TO GROUND

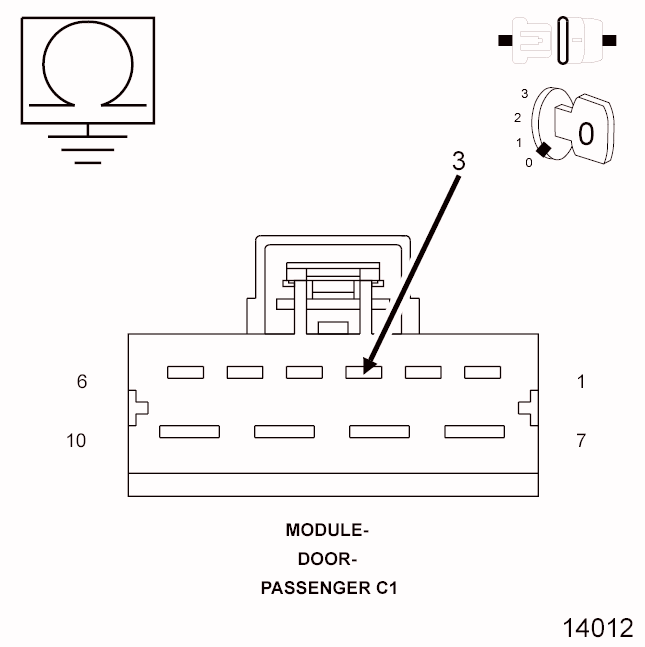

    Fig 2: Checking Passenger Window Hall Sensor B Signal Circuit For A Short To Ground
    GC0106488Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between Ground and the (Q304) Passenger Window Hall Sensor B Signal circuit.

      Is the resistance below 10, 000 Ohms?

      Yes

      • Repair the (Q304) Passenger Window Hall Sensor B Signal circuit for a short to ground.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Go To  4
  4. (Q302) PASSENGER WINDOW HALL SENSOR A SIGNAL CIRCUIT OPEN

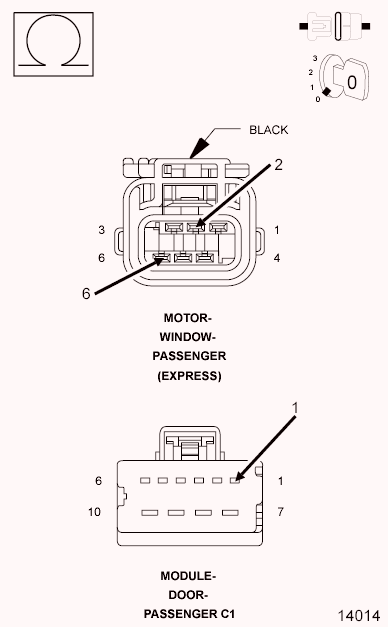

    Fig 3: Checking Passenger Window Hall Sensor A Signal Circuit For An Open
    GC0123672Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (Q302) Passenger Window Hall Sensor A Signal circuit between the Motor connector (JS41-Cav 6) (JS27-Cav 2) and the Module C1 connector.

      Is the resistance below 1.0 Ohms?

      No

      • Repair the (Q302) Passenger Window Hall Sensor A Signal circuit for an open.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      Yes

      • Go To  5
  5. (Q304) PASSENGER WINDOW HALL SENSOR B SIGNAL CIRCUIT OPEN

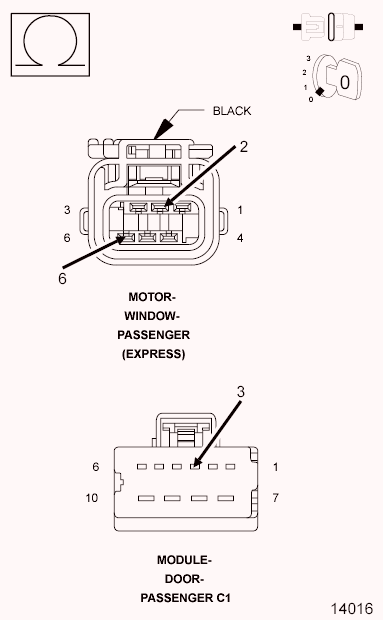

    Fig 4: Checking Passenger Window Hall Sensor B Signal Circuit For An Open
    GC0123673Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (Q304) Passenger Window Hall Sensor B Signal circuit between the Motor connector (JS41-Cav 2) (JS27-Cav 6) and the Module C1 connector.

      Is the resistance below 1.0 Ohm?

      No

      • Repair the (Q304) Passenger Window Hall Sensor B Signal circuit for an open.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      Yes

      • Go To  6
  6. (Q304) PASSENGER WINDOW HALL SENSOR B SIGNAL CIRCUIT SHORTED TO THE (Q990) PASSENGER WINDOW HALL SENSOR RETURN CIRCUIT

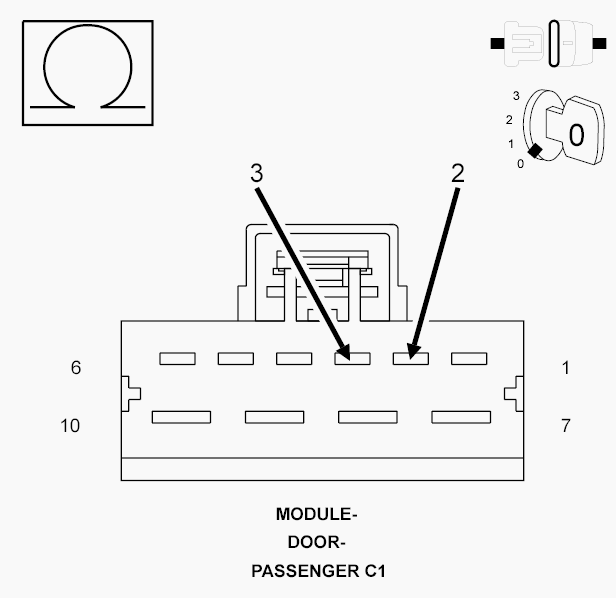

    Fig 5: Checking Passenger Window Hall Sensor B Signal Circuit For Short To Passenger Window Hall Sensor Return Circuit
    GC0106491Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (Q304) Passenger Window Hall Sensor B Signal circuit and the (Q990) Passenger Window Hall Sensor Return circuit in the PDM C1 connector.

      Is the resistance below 10, 000 Ohms?

      Yes

      • Repair the (Q304) Passenger Window Hall Sensor B Signal circuit for a short to the (Q990) Passenger Window Hall Sensor Return circuit.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Go To  7
  7. (Q302) PASSENGER WINDOW HALL SENSOR A SIGNAL CIRCUIT SHORTED TO THE (Q990) PASSENGER WINDOW HALL SENSOR RETURN CIRCUIT

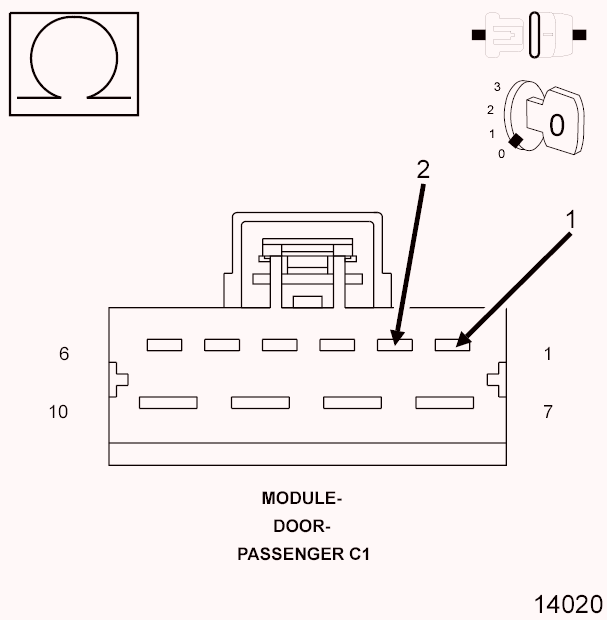

    Fig 6: Checking Passenger Window Hall Sensor A Signal Circuit For Short To Passenger Window Hall Sensor Return Circuit
    GC0106492Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (Q302) Passenger Window Hall Sensor A Signal circuit and the (Q990) Passenger Window Hall Sensor Return circuit in the PDM C1 connector.

      Is the resistance below 10, 000 Ohms?

      Yes

      • Repair the (Q302) Passenger Window Hall Sensor A Signal circuit for a short to the (Q990) Passenger Window Hall Sensor Return circuit.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Go To  8
  8. (Q302) PASSENGER WINDOW HALL SENSOR A SIGNAL CIRCUIT SHORTED TO THE (Q304) PASSENGER WINDOW HALL SENSOR B SIGNAL CIRCUIT

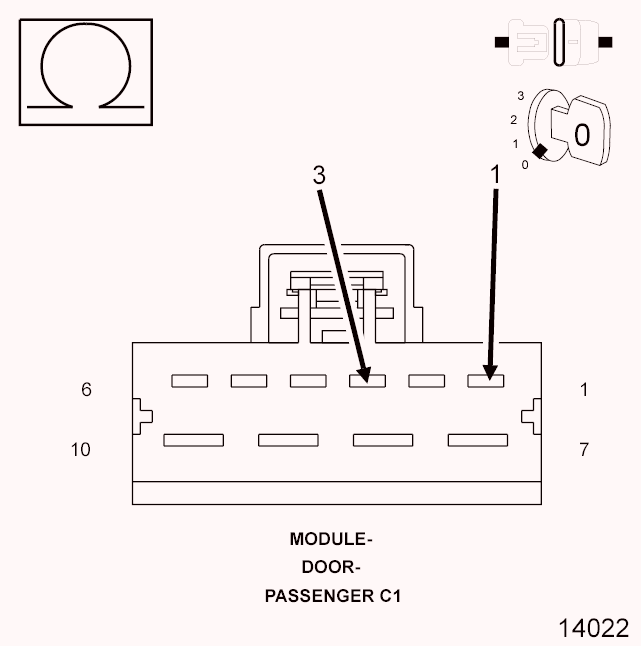

    Fig 7: Checking Passenger Window Hall Sensor A Signal Circuit Short To Passenger Window Hall Sensor B Signal Circuit
    GC0106493Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (Q302) Passenger Window Hall Sensor A Signal circuit and the (Q304) Passenger Window Hall Sensor B Signal circuit.

      Is the resistance below 10, 000 Ohms?

      Yes

      • Repair the (Q302) Passenger Window Hall Sensor A Signal circuit for a short to the (Q304) Passenger Window Hall Sensor B Signal circuit.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Replace the Window Regulator Assembly in accordance with the Service Information.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
