1500 Light Duty

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

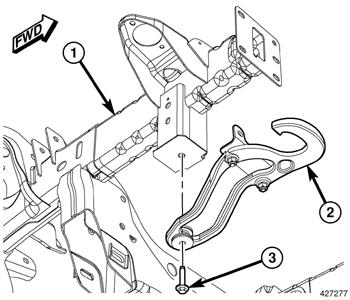

Fig 1: Frame Tip, Tow Hook & Bolt
GC0088245Courtesy of CHRYSLER LLC
  1. Remove the front bumper. Refer to BUMPER, Front , Removal .
  2. Remove the bolts (3) and remove the tow hook assembly (2).
