2500 - 3500 Heavy Duty

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: SKID PLATE
GC0108733Courtesy of CHRYSLER LLC
  1. Remove the transfer case skid plate(2), if equipped. Refer to PLATE, Skid, Front , Removal PLATE, Skid, Transfer Case , Removal .

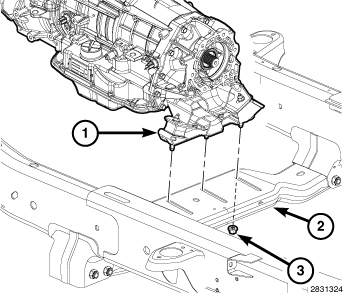

    Fig 2: Identifying Transmission Mount Nuts
    GC0137152Courtesy of CHRYSLER LLC
  2. Remove the nuts (3) fastening the transmission mount (1) to the transmission crossmember (2).

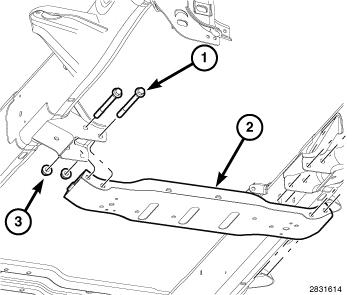

    Fig 3: Identifying Crossmember With Bolts & Nuts
    GC0137153Courtesy of CHRYSLER LLC
  3. Support the transmission with a transmission jack or suitable lifting device.
  4. Remove the four bolts (1) and nuts (3) and remove the transmission crossmember (2).
