CROSSMEMBER, Lower Control Arm: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/installing Front Skid Plate

Courtesy of CHRYSLER LLC

Raise and support the vehicle. Refer to Hoisting , Standard Procedure .
Remove the front skid plate (2), if equipped. Refer to PLATE, Skid, Front , Removal PLATE, Skid, Transfer Case , Removal .

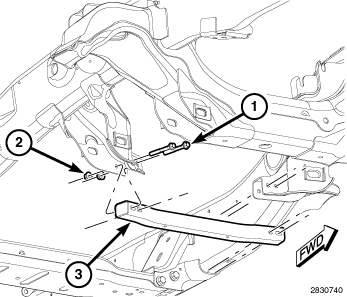

Fig 2: Removing/installing Crossmember
Courtesy of CHRYSLER LLC
Remove the bolts (1) and remove the crossmember (3).

Fig 3: 2500 Heavy Duty 4x2

Courtesy of CHRYSLER LLC
