FASCIA, Front: Installation: Installation: Upper

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

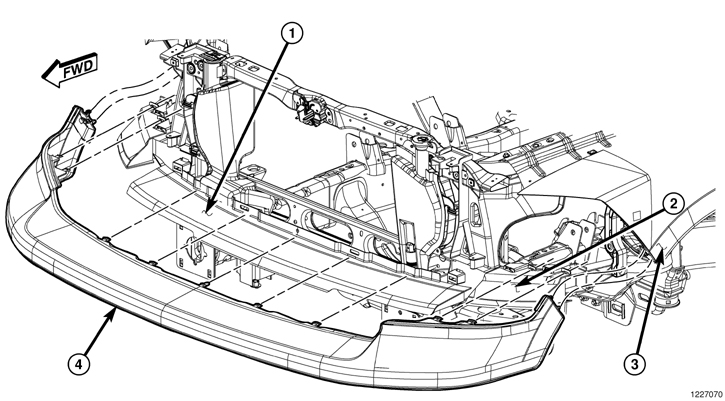

Fig 1: Removing/installing Upper Fascia

Courtesy of CHRYSLER LLC

Locate the end wings under the headlamp (3) and roll down into position.
Position the center locator pin in the center of the fascia to the retainer hole and seat fully.
Working from the center out, seat all the clips fully.
Install the grille. Refer to GRILLE , Installation .

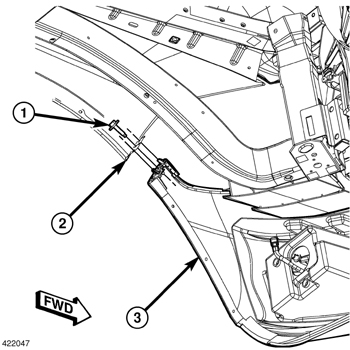

Fig 2: Screws, Fascia & Fender
Courtesy of CHRYSLER LLC

NOTE:
Sport fascia shown in illustration, upper fascia similar.
Install the screws (1) attaching the fascia (3) to the fender (2).

Fig 3: Wheelhouse Splash Shield & Push Pins
Courtesy of CHRYSLER LLC
Position the wheelhouse splash shield back and install the push pins (3).
