Diagnostic Test

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR ACTIVE DTC B2338-HORN CONTROL CIRCUIT OPEN
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Operate the Horn switch several times.
4. With the scan tool, read DTCs.
  Does the scan tool display active DTC B2338-HORN CONTROL CIRCUIT OPEN?

  Yes
  - Go To 2
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
(X21) AND (X22) HORN CONTROL OUTPUT CIRCUITS OPEN

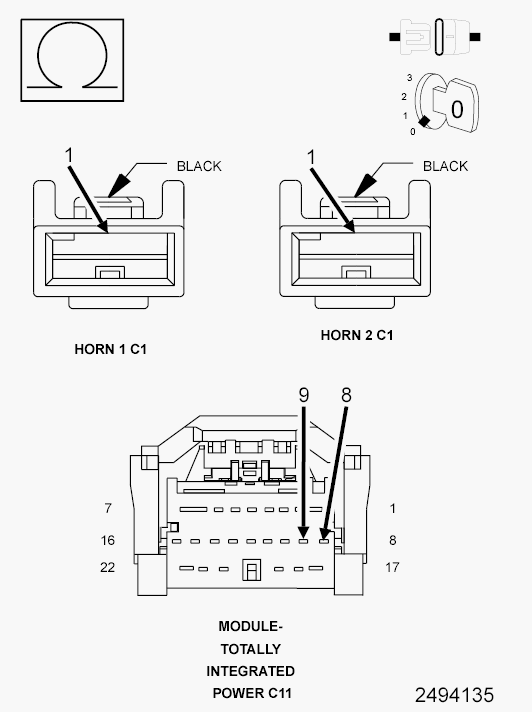

Fig 1: Checking Horn Control Output Circuits For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Horn 1 C1 harness connector.
3. Disconnect the Horn 2 C1 harness connector.
4. Disconnect the TIPM C11 harness connector.
5. Measure the resistance of the (X21) and (X22) Horn Control Output circuits between the TIPM C11 harness connector and the Horn 1 and 2 C1 harness connectors.
  Are the resistances below 5.0 Ohms?

  Yes
  - Go To 3
  No
  - Repair the open in the (X21) and (X22) Horn Control Output circuits.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
CHECK THE HORNS FOR PROPER OPERATION
1. Using a fused jumper wire, momentarily connect the (X21) Horn Control Output circuit and B(+) in the Horn 1 C1 component connector.
2. Using a fused jumper wire, momentarily connect the (X22) Horn Control Output circuit and B(+) in the Horn 2 C1 component connector.
  Do both horns operate properly?

  Yes
  - Go To 5
  No
  - Go To 4
(Z920) GROUND CIRCUIT OPEN

Fig 2: Checking Ground Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Disconnect the jumper wire.
2. Disconnect the Horn 1 C2 harness connector.
3. Disconnect the Horn 2 C2 harness connector.
4. Using a 12-volt test light connected to 12-volts, check the (Z920) Ground circuit in the Horn 1 and 2 C2 harness connectors.
  Does the test light illuminate brightly?

  Yes
  - Replace the Horn(s) as necessary in accordance with the Service Information. Refer to HORN, REMOVAL .
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Repair the open or excessive resistance in the (Z920) Ground circuit.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
TOTALLY INTEGRATED POWER MODULE (TIPM)
NOTE:
Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
1. Using the schematics as a guide, inspect the wire harness and connectors.
2. Pay particular attention to all Power and Ground circuits.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Replace the TIPM in accordance with the Service Information. Refer to MODULE, TOTALLY INTEGRATED POWER (TIPM), REMOVAL .
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
