Motor, Wiper, Front: Removal: Removal
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative cable from the battery.
- Remove wiper module. Refer to LINKAGE, WIPER ARM, REMOVAL .
- Using a pry bar or equivalent, gently pry linkage off motor crank arm ball stud.

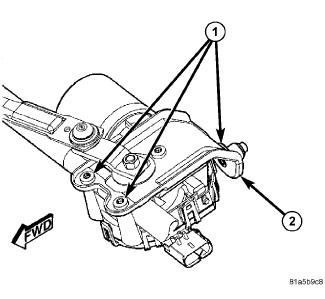

- Remove the three retaining bolts (1) to wiper module (2) and remove motor.
