Linkage, Wiper Arm: Installation: Installation
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

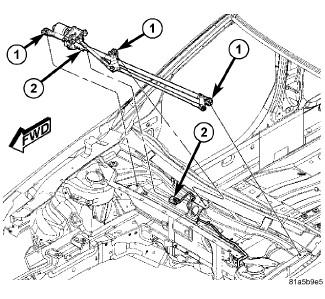

- Connect wire connector (2) at motor.
- Place assembly into position and install the three mounting bolts (1). Tighten bolts to 11 N.m (97 in. lbs.).
- Install the cowl screen. Refer to COVER, COWL PANEL, INSTALLATION .
- Install the wiper arms and blades. Refer to ARM, WIPER, FRONT, INSTALLATION .
- Reconnect the negative cable to the battery.
- If necessary, adjust wiper arms. Refer to ARM, WIPER, FRONT, ADJUSTMENTS .
