Hose, Headlamp Washer, Export: Installation: Installation
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
The headlamp washer hose is a special high pressure hose with specific fittings, and must be replaced as a unit.

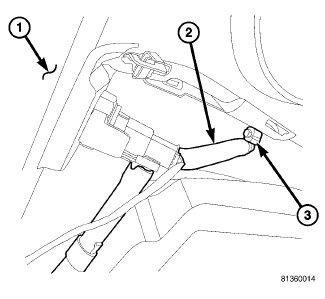

- Install the new high pressure headlamp washer hose (2) assembly. Push fitting (3) on until a snap is heard.
- Install the fascia. Refer to FASCIA, FRONT, INSTALLATION .
- Reconnect the negative cable to the battery.
