Switch, Power Top, Stack Cylinder Position: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Folding Top Stack Cylinder Position Switch

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Put decklid in the service position. Refer to STANDARD PROCEDURE .
Remove the cylinder rear retaining clip and pin (2).
Disconnect the folding top stack cylinder position switch (1) electrical connector.
Raise the rear of the folding top stack cylinder upward to gain access to the cylinder position switch (4).

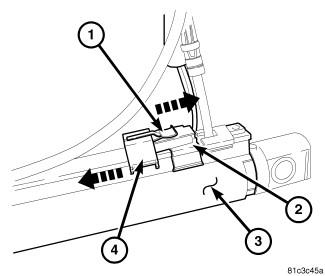

Fig 2: Hydraulic Cylinder Hall Effect Switch Removal/Installation
Courtesy of CHRYSLER GROUP, LLC
Using a small flat bladed screwdriver or other suitable tool, gently slide the position switch retainer locking tab (1) away from the retainer (4).
Slide the position switch retainer (4) away from the switch (2).
Lift the position switch (2) off of the folding top stack cylinder (3).
Disconnect any position switch wire harness routing clips and remove the switch from the vehicle.
