PUMP, Transmission Oil: Disassembly: Disassembly

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

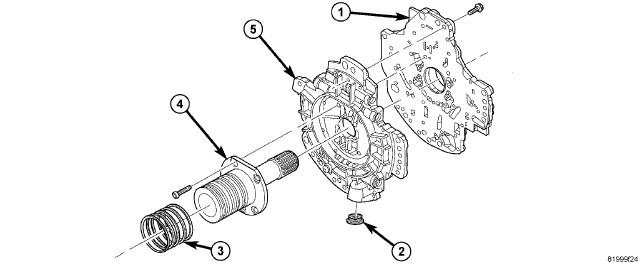

Fig 1: Oil Pump Reaction Shaft
GC0083640Courtesy of CHRYSLER LLC
1 - PUMP HOUSING 4 - REACTION SHAFT SUPPORT
2 - OIL FILTER SEAL 5 - PUMP VALVE BODY
3 - SEAL RING (5)
  1. Remove the bolts holding the reaction shaft support (4) to the oil pump.
  2. Remove the reaction shaft support (4) from the oil pump.
  3. Remove all bolts holding the oil pump halves together.
  4. Using suitable prying tools, separate the oil pump sections by inserting the tools in the supplied areas and prying the halves apart.
    NOTE:

    The oil pump halves are aligned to each other through the use of two dowels. Be sure to pry upward evenly to prevent damage to the oil pump components.

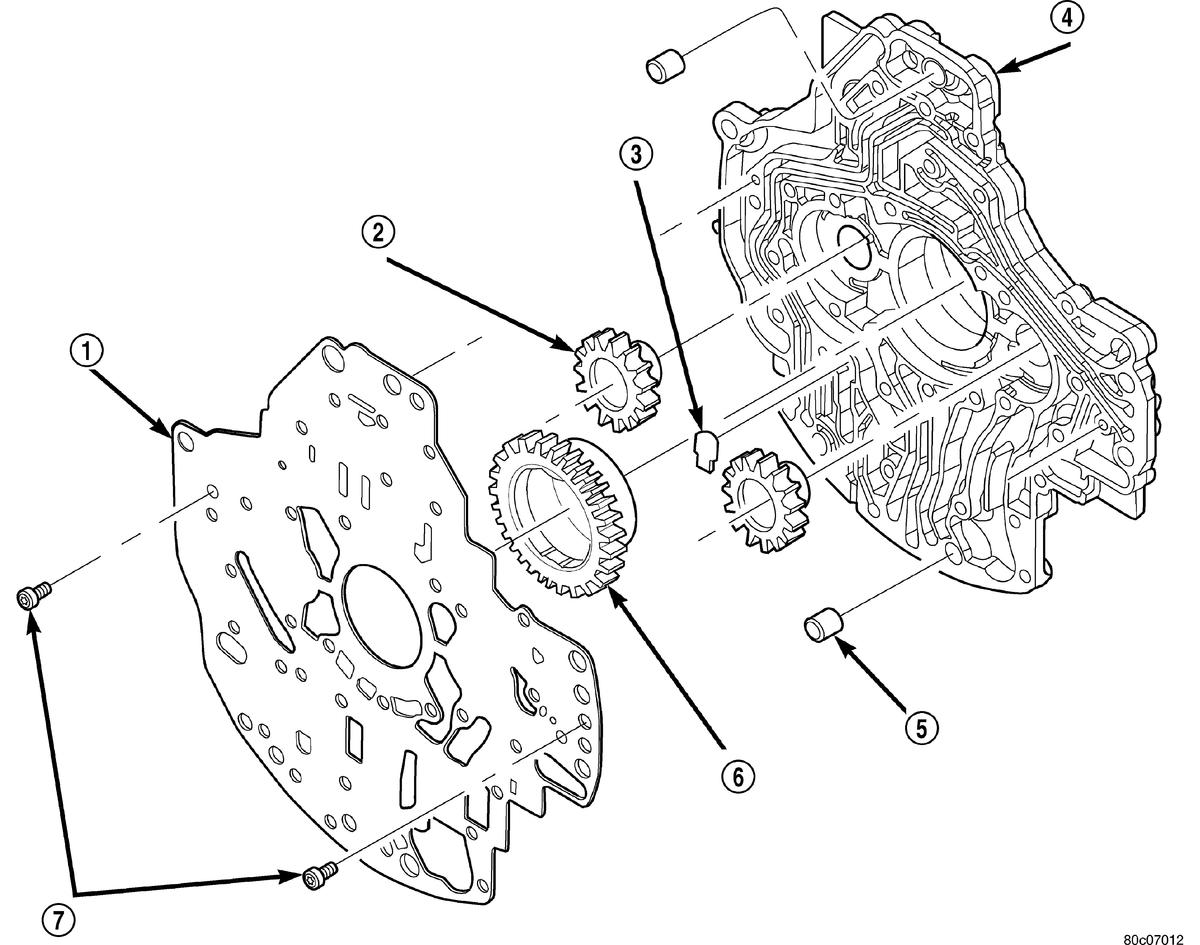

    Fig 2: Placing Separator Plate Onto Oil Pump Housing
    GC0083641Courtesy of CHRYSLER LLC
    1 - SEPARATOR PLATE 5 - DOWEL (2)
    2 - DRIVEN GEAR (2) 6 - DRIVE GEAR
    3 - FLAPPER VALVE 7 - SCREW
    4 - PUMP HOUSING
  5. Remove the screws (7) holding the separator plate (1) onto the oil pump housing (4).
  6. Remove the separator plate (1) from the oil pump housing (4).
  7. Mark all gears for location. The gears are select fit and if the oil pump is to be reused, the gears must be returned to their original locations.
  8. Remove the oil pump flapper valve (3) from its pocket in the pump housing.
  9. Remove the oil pump gears (2, 6) from the oil pump housing (4).

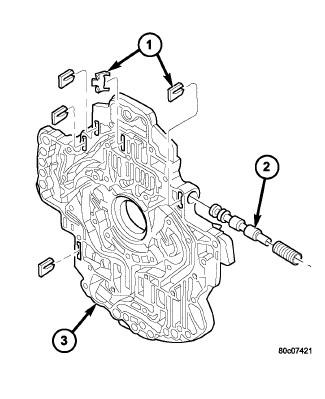

    Fig 3: Installing Valve, Spring, And Retainer Into Appropriate Oil Pump Valve Body Bore
    GC0083642Courtesy of CHRYSLER LLC
    1 - RETAINER
    2 - T/C SWITCH VALVE
    3 - OIL PUMP VALVE BODY
  10. Remove the oil pump valve retainers (1) and associated valve (2) and spring one at a time. Mark the combination of components as a group and tag them as to the location from which they were removed.

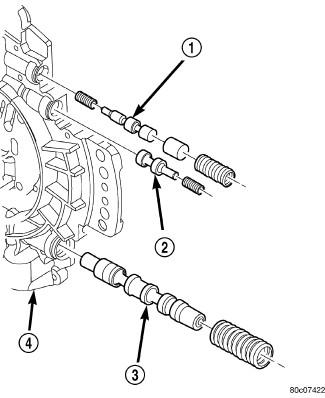

    Fig 4: Installing T/C Regulator Valve, T/C Limit Valve, And Regulator Valve
    GC0083643Courtesy of CHRYSLER LLC
    1 - T/C REGULATOR VALVE
    2 - T/C LIMIT VALVE
    3 - MAIN REGULATOR VALVE
    4 - OIL PUMP VALVE BODY
  11. Remove the T/C regulator valve (1), T/C limit valve (2), and main regulator valve (3).
