HOUSING, Transmission, Rear Extension: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear drive shaft. Refer to SHAFT, Drive, Rear Light Duty , Removal or SHAFT, Drive, Rear Heavy Duty , Removal .

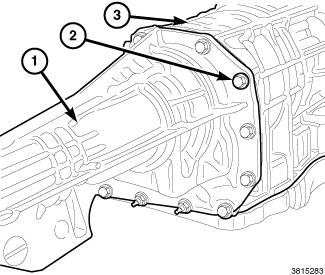

    Fig 1: Identifying Extension Housing And Bolts
    GC0143995Courtesy of CHRYSLER LLC
  2. Remove extension housing bolts (2).
  3. Remove extension housing (1) from the transmission (3).
