Section 469 (Starting System (Service Information)): Starter: Installation: 2.4L

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

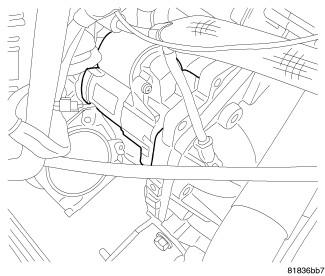

Fig 1: Starter Electrical Connectors

Courtesy of CHRYSLER GROUP, LLC

Connect starter motor wiring. Tighten battery cable nut to 10 N.m (90 in. lbs.).

Fig 2: Rotating Starter
Courtesy of CHRYSLER GROUP, LLC
Install starter motor into vehicle lower engine compartment.

Fig 3: Installing Starter
Courtesy of CHRYSLER GROUP, LLC
Loose install starter into position.

Fig 4: Throttle Body Bracket
Courtesy of CHRYSLER GROUP, LLC
Install throttle body
Install throttle body bracket.

Fig 5: Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Install starter motor mounting bolts and tighten to 54 N.m (40 ft. lbs.).

Fig 6: Throttle Body Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect throttle body electrical connector.
Install air cleaner box and inlet tube.
Connect battery negative cable.
