Air Bag, Side Curtain: Installation: Installation
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

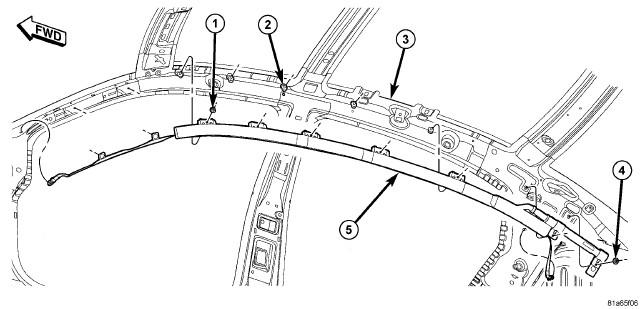

- Install the side curtain airbag (also known as Side AirBag Inflatable Curtain/SABIC) (5) into the vehicle.WARNING:
Make sure the airbag is not twisted upon installation.
- Set the airbag (5) onto the studs at the roof line.
- Install the seven nuts (1 and 4) and tighten to 11 N.m (97 in. lbs.).
- Install the front and rear tethers into their retaining slots.

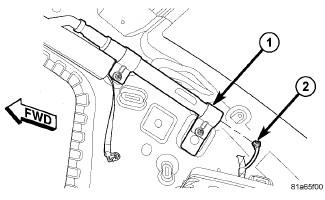

- Connect the squib connector (2) to the rear of the inflator (1).NOTE:
Use a new headliner if curtain airbag was deployed on either side of the vehicle.
- Install the headliner. Refer to HEADLINER, INSTALLATION .
WARNING:
Do not connect the battery negative cable. first. Serious or fatal injury may result if the system test is not performed first.
