Section 453 (Engine Cooling System): Description: Description
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

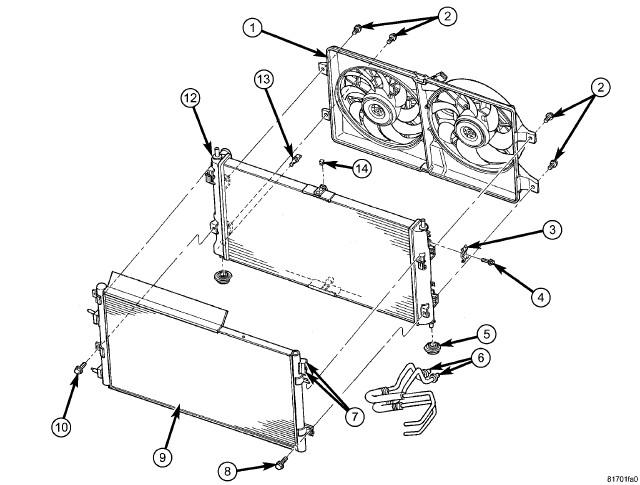

| 1 - RADIATOR FAN MODULE |
| 8 - COMBINATION A/C CONDENSER AND TRANSMISSION OIL COOLER FASTENER |
| 2 - FAN MODULE TO RADIATOR FASTENERS |
| 9 - COMBINATION A/C CONDENSER AND TRANSMISSION OIL COOLER |
| 3 - TRANSMISSION COOLER TUBE BRACKET |
| 10 - COMBINATION A/C CONDENSER AND TRANSMISSION OIL COOLER FASTENER |
| 4 - BRACKET FASTENER |
| 11 - TRANSMISSION COOLER TUBE (OUTLET) |
| 5 - ISOLATOR |
| 12 - RADIATOR |
| 6 - TRANSMISSION COOLER TUBES |
| 13 - RADIATOR DRAINCOCK |
| 7 - TRANSMISSION COOLER TUBE FITTINGS |
| 14 - CLIP |
The cooling system consists of an engine cooling module, thermostat, non-pressure coolant recovery container or pressurized coolant recovery container (3.6L), coolant, hoses, and a water pump to circulate the coolant. The engine cooling module consists of a radiator, electric fans, shroud, transmission oil cooler, and air conditioning condenser.
