Side Shields, Seat Cushion, Front: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

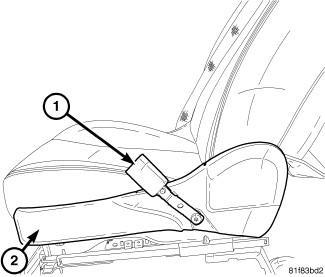

Fig 1: Seat Belt Buckle Assembly & Shield
GC0123054Courtesy of CHRYSLER GROUP, LLC
  1. When servicing the inboard shield, remove the seat from the vehicle. Refer to SEAT, REMOVAL  - SEATS, FRONT SEDAN or SEAT, FRONT, REMOVAL  - SEATS, FRONT CONVERTIBLE.
  2. When servicing the outboard shield, remove the recliner handle. Refer to HANDLE, FRONT RECLINER, REMOVAL  - SEATS, FRONT SEDAN or HANDLE, FRONT RECLINER, REMOVAL  - SEATS, FRONT CONVERTIBLE.
  3. Remove the seat belt buckle mounting fastener and buckle (1), if required.
  4. Starting at the rear of the shield (2), carefully pry out on the shield until the rear clip and middle spring retainer releases.
  5. Slide the loosened shield forward and remove from the seat.
  6. Disconnect switch wire connectors, if equipped.
  7. Remove seat switches, if equipped.
