Panel, Rear Shelf: Removal: Removal
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
- Fold seat backs down.
- Remove the lower quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL .

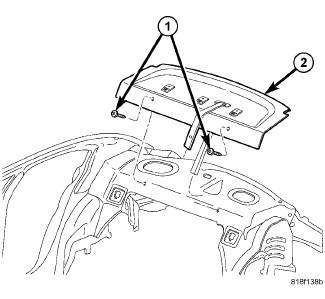

- Remove push-in (1) fasteners attaching rear shelf trim to shelf panel (2).
- Disconnect the center shoulder belt at the base. Refer to RETRACTOR, SEAT BELT, REAR CENTER, REMOVAL .
- Pull trim forward to disengage clip attaching trim to shelf panel.
- Feed seat belt through the seat belt opening in the shelf panel.CAUTION:
Do not pull on child tether covers or use as a handle for removal of panel.
- Remove shelf trim from vehicle.
