Plate, Carrier: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

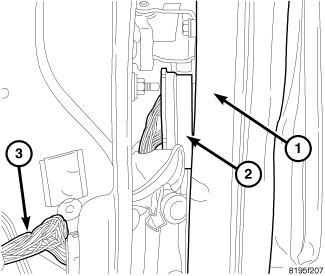

Fig 1: Wire Harness From A-Pillar
GC0122929Courtesy of CHRYSLER GROUP, LLC
  1. Remove trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .
  2. Remove glass. Refer to GLASS, DOOR, REMOVAL .
  3. Disconnect wire harness from A-pillar.
  4. Disconnect power mirror connector.

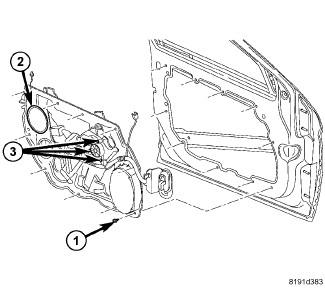

    Fig 2: Carrier Plate, Latch Plug & Fasteners
    GC0122930Courtesy of CHRYSLER GROUP, LLC
  5. Accessing through latch plug (2), disconnect latch and handle links.
  6. Remove door latch fasteners from door shut face. Refer to LATCH, DOOR, REMOVAL .
  7. Remove ten carrier plate fasteners (1).
  8. Remove carrier plate from door.
