DECKBAR Forward Latch Bumper

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

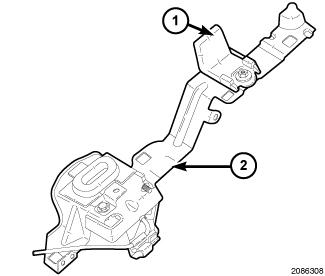

Fig 1: Deckbar Forward Latch Bumper & Bracket
GC0122836Courtesy of CHRYSLER GROUP, LLC

Deckbar forward latch bumper (1) adjusts front decklid cross car to body.

  1. Loosen the fasteners on the bumpers.
  2. Close the decklid and verify proper alignment of the decklid.
  3. Open the decklid and tighten the mounting fasteners.
  4. Close the decklid and verify proper adjustment.
