Tube, Condensation Drain: Removal: Removal
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

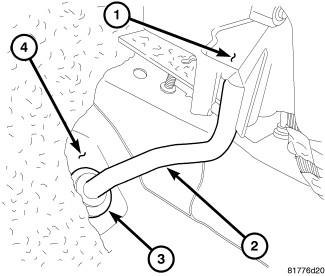

- Pull back the floor carpet to gain access to the condensation drain tube (2) located on the left side of the vehicle at the front right of the foot well. Refer to CARPET, FLOOR, REMOVAL .
- Disconnect the condensation drain tube from the bottom of the HVAC housing (1).
- Remove the condensate drain tube from the rubber grommet (3) in the front floor panel (4).
- If required, remove the rubber grommet from the floor panel.
