Passenger Side

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

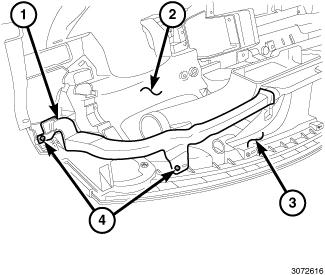

Fig 1: Passenger Side Demister Duct
GC0147066Courtesy of CHRYSLER GROUP, LLC
  1. Remove the instrument panel and place it on a workbench. Refer to PANEL, INSTRUMENT, REMOVAL .
  2. Remove the left and right instrument panel air outlets. Refer to OUTLET, AIR, REMOVAL .
  3. Remove the outer instrument panel ducts. Refer to DUCT, INSTRUMENT PANEL, REMOVAL .
  4. Remove the instrument panel top pad. Refer to PAD, INSTRUMENT PANEL, REMOVAL .
  5. Remove the two screws (4) that secure the passenger side demister duct (1) to the instrument panel top cover (2).
  6. Disconnect the passenger side demister duct from the defroster duct (3) and remove the demister duct.
