Reinforcement, Bumper, Rear: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

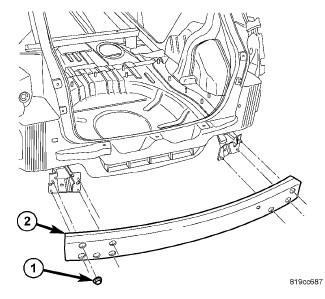

Fig 1: Rear Bumper Reinforcement
GC0122090Courtesy of CHRYSLER GROUP, LLC
  1. Remove rear fascia. Refer to FASCIA, REAR, REMOVAL .
  2. Support bumper reinforcement (2) on a suitable lifting device.
  3. Mark position of nuts (1) on frame rail to aid in installation.
  4. Remove license plate connector push pin from rear bumper reinforcement.
  5. Remove nuts (1) attaching rear bumper reinforcement (2) to frame rail.
  6. Remove bumper reinforcement (2) from vehicle.
