Insulator, Engine Mount, Rear: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Rear Engine Mount Heat Shield & Bolts
GC0147032Courtesy of CHRYSLER GROUP, LLC
  1. Remove the belly pan (Refer to ).
  2. Remove two bolts (1) and the rear engine mount heat shield (2).
    Fig 2: Rear Engine Mount Bracket & Bolts
    GC0147033Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolt (3) from the rear engine mount isolator.
  4. Remove four bolts (2) and the rear engine mount bracket (1).

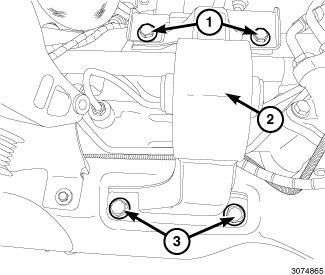

    Fig 3: Rear Mount Isolator & Bolts
    GC0147075Courtesy of CHRYSLER GROUP, LLC
  5. Remove bolts (1 and 3) and the rear mount (2).
