Valve, Oil Pressure Relief: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

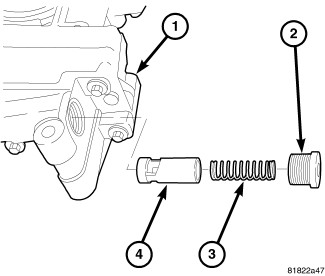

Fig 1: Oil Pressure Relief Valve
GC0121515Courtesy of CHRYSLER GROUP, LLC
  1. Remove oil pan Refer to PAN, OIL, REMOVAL .
  2. Remove pressure regulating valve cap (2).
  3. Remove pressure regulating valve spring (3) and valve (4).
