Pump, Engine Oil: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

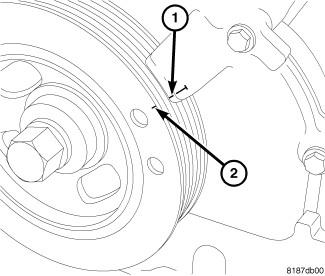

Fig 1: TDC

Courtesy of CHRYSLER GROUP, LLC

Rotate engine to TDC (1, 2) on #1 compression stroke.

Fig 2: BSM Tensioner
Courtesy of CHRYSLER GROUP, LLC
Remove the oil pan. Refer to PAN, OIL, REMOVAL .
Remove the engine timing cover. Refer to COVER(S), ENGINE TIMING, REMOVAL .
Mark the chain (6) and the sprocket (5) for reassembly.

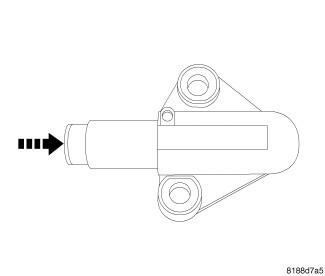

Fig 3: Oil Pump Tensioner Reset
Courtesy of CHRYSLER GROUP, LLC
Push tensioner piston back into the tensioner body.

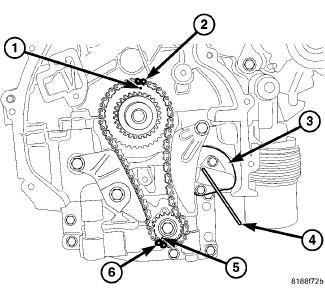

Fig 4: Oil Pump Drive Chain, Oil Pump Drive Chain Tensioner & Timing Marks On Chain
Courtesy of CHRYSLER GROUP, LLC
With piston held back insert tensioner pin (special tool #9703, Pin, Tensioner) (4) into the tensioner body to hold the piston in the retracted position.
NOTE:
Do not remove sprocket from BSM.
Remove BSM mounting bolts. Discard 180 mm bolts, 185 mm bolts can be reused.
Lower the back of the BSM and remove the chain (6) from the sprocket (5).
Remove BSM from the engine.
