MODULE, Power Inverter: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

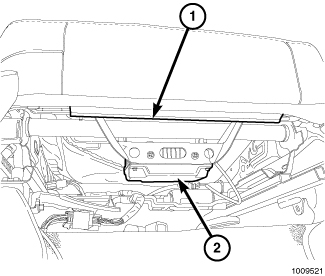

Fig 1: Identifying Seat Cushion J-channel & Power Inverter Module

Courtesy of CHRYSLER LLC

Disconnect and isolate the negative battery cable.
Release the seat cushion j-channel (1) from the seat frame to gain access to the power inverter module (2).

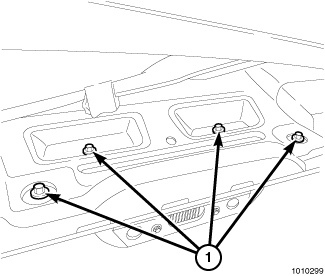

Fig 2: Identifying Power Inverter Mounting Bracket Retainers
Courtesy of CHRYSLER LLC
Lift up on the seat cushion and remove the four power inverter mounting bracket retainers.
Disconnect the power inverter electrical connector and remove the power inverter assembly from the vehicle.

Fig 3: Removing/installing Power Inverter Assembly
Courtesy of CHRYSLER LLC

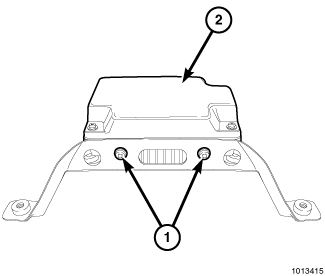

Fig 4: Identifying Power Inverter To Mounting Bracket
Courtesy of CHRYSLER LLC

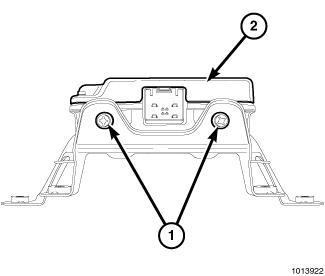

Fig 5: Identifying Power Inverter To Mounting Bracket
Courtesy of CHRYSLER LLC
Remove the four screws holding the power inverter to the mounting bracket.
Remove the power inverter.
