MOTOR, Adjustable Pedals: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If equipped with adjustable pedals: When replacing the components both pedal assemblies must be in the fully down position toward the floor for proper adjustment. Pedals can be moved manually by rotating the cable on the component not being replaced. New components come in the correct position until activated.

Fig 1: Adjustable Pedals System Components

Courtesy of CHRYSLER LLC

Position the accelerator subassembly (6) and install the rear mounting screw (4).

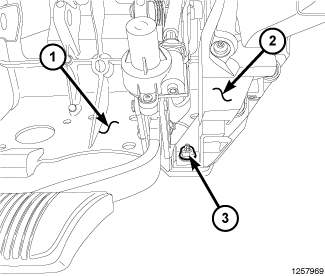

Fig 2: Locating Accelerator Sub-Assembly Bracket Mounting Nut (3)
Courtesy of CHRYSLER LLC
Install the accelerator subassembly front mounting nut (3).

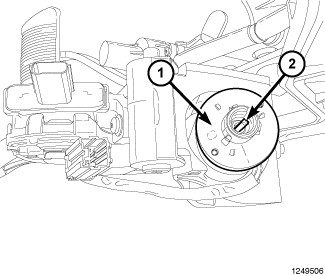

Fig 3: Drive Cable To Motor Housing Adapter
Courtesy of CHRYSLER LLC

NOTE:
Drive cable to motor housing adapter (2) can be turned manually within the motor housing (1) to allow proper alignment for drive cable attachment to motor.
Verify the drive cable to motor housing adapter (2) is properly inserted in motor housing (1) before attaching drive cable.

Fig 4: Adjustable Pedals System Components
Courtesy of CHRYSLER LLC

NOTE:
A snap sound should be heard when drive cable locks into position.
Align drive cable housing to motor tabs/slots (3), and using light hand pressure push drive cable (2) into position on the drive motor (5). Turn counter clockwise to lock into position.
Install the pedal assembly, Refer to PEDAL(S), Brake and/or Accelerator , Installation .
