Relay, Fuel Pressure Shut-Off: Installation: Installation
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

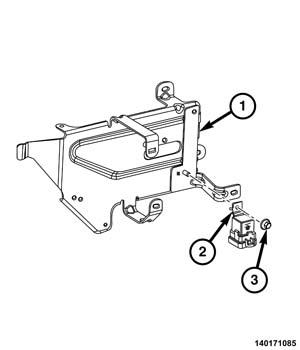

- Position the shut- relay (2) onto the fuel pressure regulator bracket (1).
- Install the nut (3). Tighten to 10 N.m (89 in. lbs.).
- Reconnect the shut-down relay electrical connector.
- Check condition of relay terminals and Fuse and Relay Block connector terminals for damage or corrosion. Repair if necessary before installing relay.
- Reconnect the battery negative cable.
