Receptacle, Fuel Fill: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

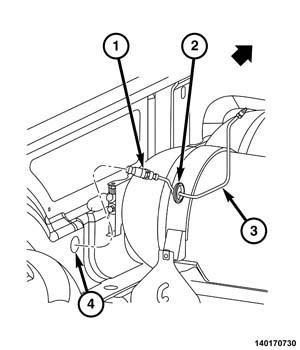

Fig 1: Line, Grommet & Inner Fender

Courtesy of CHRYSLER GROUP, LLC

Using care, route the filler line (3) through the access hole at the fender (4).
Install the rubber grommet (2) onto the inner fender.

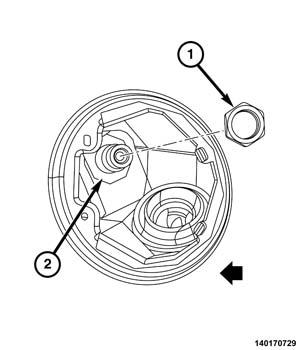

Fig 2: CNG Filler & Lock Nut
Courtesy of CHRYSLER GROUP, LLC
Align the filler receptacle (2) to the fuel shroud.
Install the CNG filler lock nut (1). Tighten to 45 N.m (33 ft. lbs.).

Fig 3: Cylinder Tank Valve, Connectors & Lines
Courtesy of CHRYSLER GROUP, LLC
Install the filler line (5) to the one way check valve at the quarter turn valve (2). tighten the line to 5 N.m (44 in. lbs.).
Check the fuel lines for leaks using an air leak detection fluid.

Fig 4: Upper And Rear Cylinder Tank Covers & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the upper cylinder tank cover (2).
