Antenna, Passive Entry: Installation: B-Pillar
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

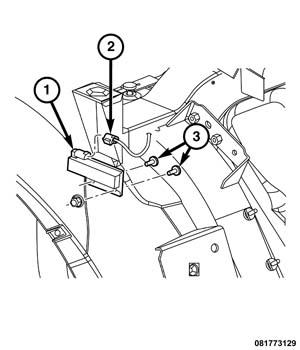

- Move the LF antenna into position for installation.
- Install the two screws (3) that secure the LF antenna to the door inner panel (4).
- Reconnect the door wire harness connector (2) to the Low Frequency (LF) antenna (1) connector receptacle.
- Install the trim panel from to the inside of the door. Refer to PANEL, DOOR TRIM, INSTALLATION .
- Connect the battery cable to the negative battery post.
