5TH Wheel Hitch

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

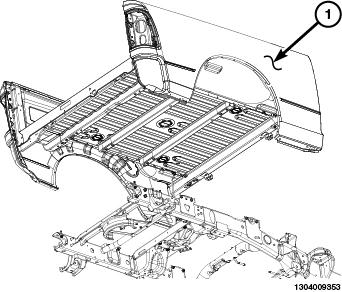

Fig 1: Pickup Box

Courtesy of CHRYSLER GROUP, LLC

Remove the box (1) as needed to gain access to the 5th wheel hitch parts. Refer to BOX, PICKUP, REMOVAL .

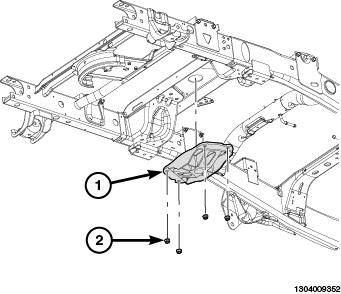

Fig 2: 5th Wheel Plate & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (2) and remove the 5th wheel plate (1).

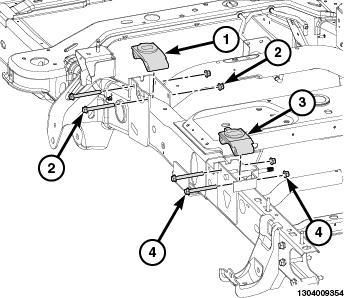

Fig 3: Tie Downs & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (2, 4) and remove the tie downs (1, 3) as needed.
