Module, Heated Seat: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

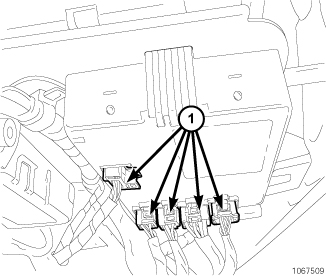

Fig 1: Heated Seat Module Connectors
GC0087519Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Disconnect the five electrical connectors (1) from the Heated Seat Module (HSM) located under the driver seat.

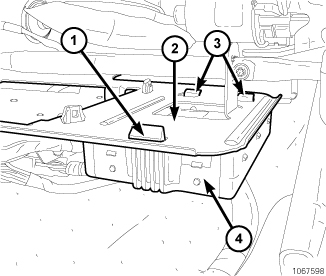

    Fig 2: Removing/Installing Heated Seat Module
    GC0087520Courtesy of CHRYSLER GROUP, LLC
  3. Remove the HSM (4) from the seat frame (2). Push the lock tab (1) toward the rear of the seat, then slightly lower the front of the HSM and pull it forward to disengage the rear retaining tabs (3).
