Switch, Park Assist: Description: Description

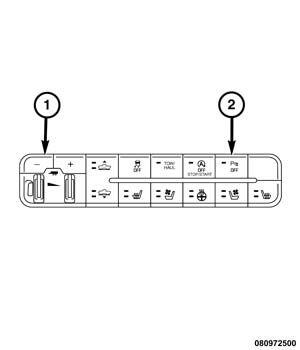

The park assist Off switch (2) is integral to the instrument panel switch pod (1) (also known as the Accessory Switch Bank Module (ASBM)), which is secured to the instrument panel center bezel just below the heater and air conditioner controls. Refer to POD, SWITCH, DESCRIPTION .
The park assist Off switch push button is clearly identified with a white International Control and Display Symbol graphic for Parking Aid and the text OFF . An amber Light Emitting Diode (LED) unit is illuminated behind a small clear plastic jewel-like lens in the push button to give a visual indication whenever the park assist system has been manually disabled while the status of the ignition switch is ON. The switch button also has panel lamps dimmer controlled illumination for night visibility.
All of the circuitry and components of the park assist Off switch are contained within a molded black plastic instrument panel switch pod housing. A single connector receptacle is integral to the back of the switch pod housing. The switch is connected to the vehicle electrical system through a dedicated take out and connector of the instrument panel wire harness.
The park assist Off switch cannot be adjusted or repaired and, if the switch is ineffective or damaged, the entire instrument panel switch pod unit must be replaced with a new unit.
