Front Door Speaker

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the front door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .

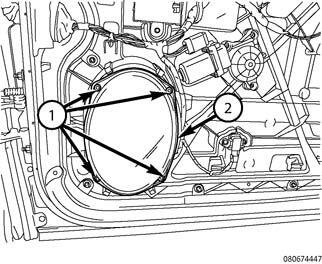

    Fig 1: Front Door Speaker
    GC0154548Courtesy of CHRYSLER GROUP, LLC
  3. Remove the speaker (2) mounting fasteners. (1)

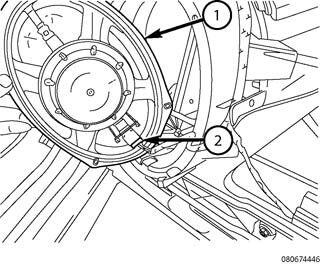

    Fig 2: Disconnecting/Connecting Speaker Electrical Connector
    GC0154438Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the electrical connector (2) and remove the speaker (1).
