C0042-12-Brake Pedal Position Sensor - Circuit Short To Battery: Notes

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

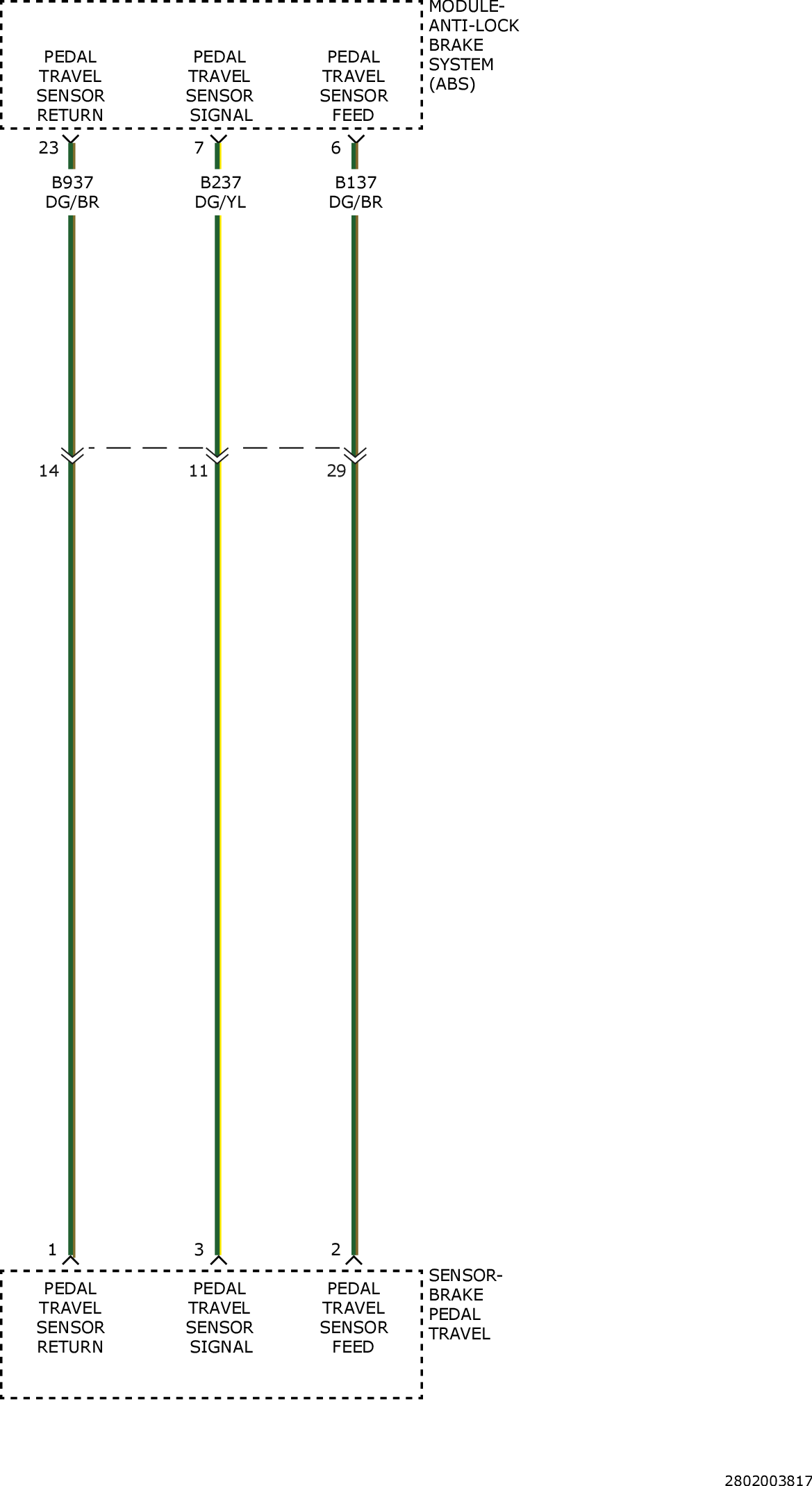

Fig 1: Brake Pedal Travel Sensor Feed, Return & Signal Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
