Seal, Crankshaft Oil, Front: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

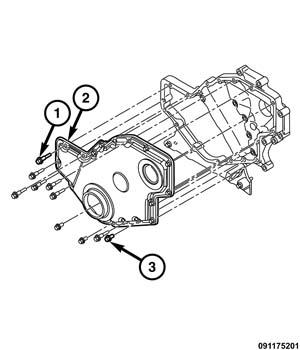

Fig 1: Engine Timing Cover Components
GC0155255Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate both negative battery cables.
  2. Remove the engine timing cover (2). Refer to COVER(S), ENGINE TIMING, REMOVAL, 6.7L .

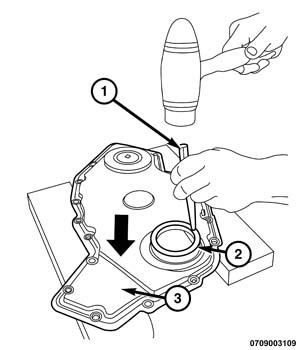

    Fig 2: Driving Seal Out Of The Cover
    GC0155199Courtesy of CHRYSLER GROUP, LLC
  3. Support the engine timing cover on a flat work surface with wooden blocks, and using a suitable punch (1) and hammer, drive the old seal (2) out of the cover from the front side of the cover to the back side.
