Manifold, Exhaust: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 2500 HD and 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Exhaust Manifold & Gasket

Courtesy of CHRYSLER GROUP, LLC

Left side shown in illustration, right similar.

Prior to installation, make sure all gasket mating surfaces (1, 2) are clean and free of any debris.
Position the exhaust manifold gasket and manifold.

Fig 2: Exhaust Manifold Bolt Tightening Sequence - Left
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The bolts used to secure the exhaust manifold are stainless steel at locations 6 and 9. All bolts removed must be installed in the same location were they were removed from.
Left Side: Using the sequence shown in illustration, Install the exhaust manifold retaining bolts and pre-tighten to 25 N.m (18 ft. lbs.) allowing the gasket to seat to the exhaust manifold and cylinder head.
Re-check the torque at 25 N.m (18 ft. lbs.) using the sequence shown in illustration.
Install the heat shield and tighten nuts to 8 N.m (70 in. lbs.).

Fig 3: Exhaust Manifold Bolt Tightening Sequence - Right
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The bolts used to secure the exhaust manifold are stainless steel at locations 7 and 8. All bolts removed must be installed in the same location were they were removed from.
Right Side: Using the sequence shown in illustration, install the exhaust manifold retaining bolts and tighten to 25 N.m (18 ft. lbs.) allowing the gasket to seat to the exhaust manifold and cylinder head.
Re-check the torque at 25 N.m (18 ft. lbs.) using the sequence shown in illustration.
Install the heat shield and tighten nuts to 8 N.m (70 in. lbs.).

Fig 4: Engine Support Tool
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not damage engine harness while lowering the engine.
Using the Engine Support Fixture (special tool #8534B, Fixture, Driveline Support), lower the engine into position.
Raise and support the vehicle.

Fig 5: Engine Mount & Bolt
Courtesy of CHRYSLER GROUP, LLC

Right side shown in illustration, left side similar.
Install the right and left engine mount through bolts (3) and tighten to 100 N.m (74 ft. lbs.).

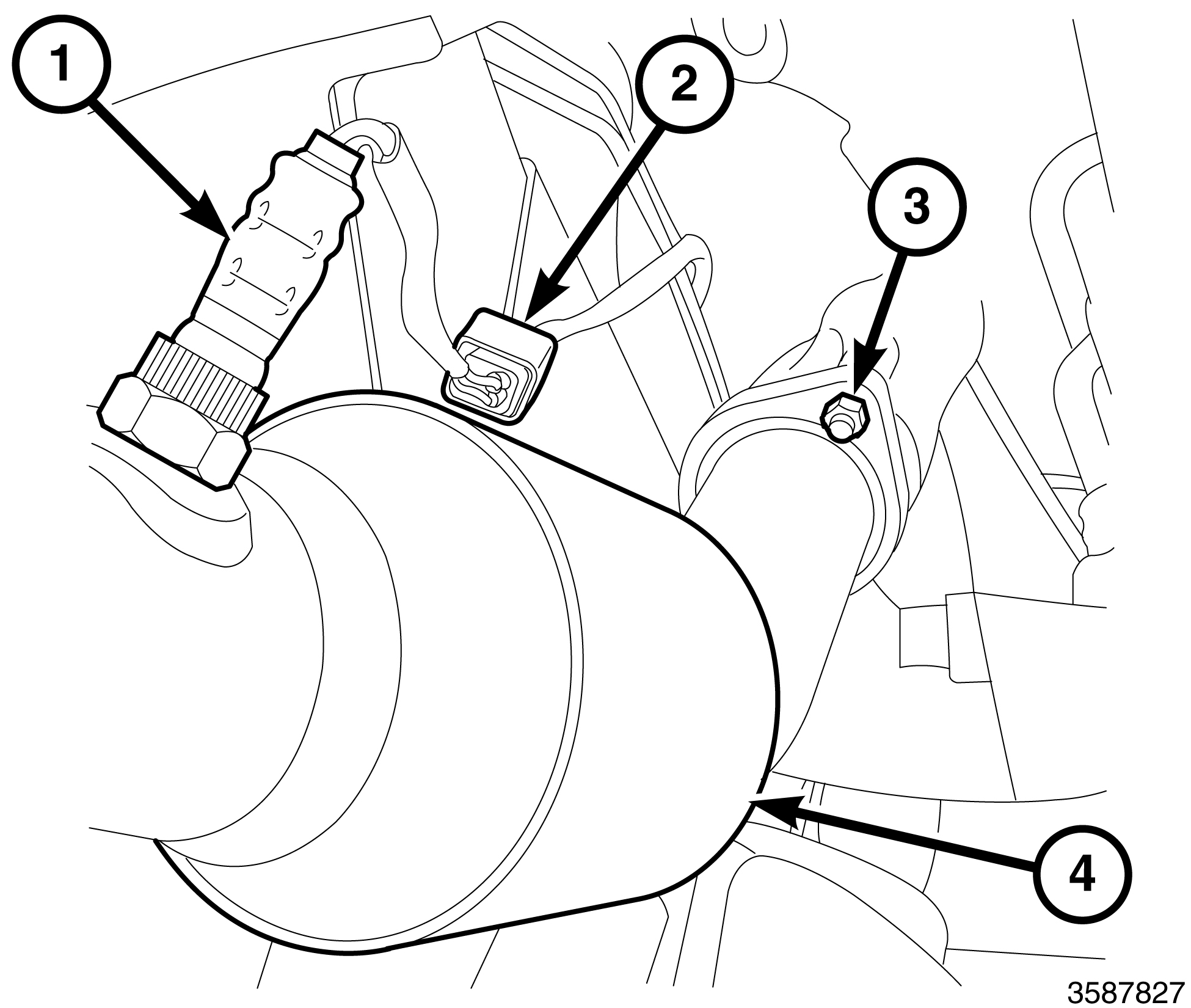

Fig 6: Oxygen Sensor, Oxygen Sensor Connector, Ball Flange Nut & LH Catalytic Converter
Courtesy of CHRYSLER GROUP, LLC
Install the right and left exhaust pipe/catalytic converter assembly.
Connect the oxygen sensor electrical connectors (2).
Lower the vehicle.
Remove Engine Support Fixture (special tool #8534B, Fixture, Driveline Support).

Fig 7: Engine Cover, Clean Air Hose, Intake Air Temperature (IAT) Sensor Electrical Connector & Air Cleaner Housing
Courtesy of CHRYSLER GROUP, LLC
Install the air cleaner housing (4).
Install the clean air hose (2).
Connect the intake air temperature (IAT) sensor electrical connector (3).
Install the engine cover (1).

Fig 8: Battery
Courtesy of CHRYSLER GROUP, LLC
Connect the negative battery cable (1).
Start the engine and check for leaks.
