Cover(S), Engine Timing: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front Cover Slide Bushings
GC0081770Courtesy of CHRYSLER GROUP, LLC
  1. Clean timing chain cover and block surface.
    NOTE:

    Always install a new gasket on timing cover.

  2. Verify that the slide bushings (1) are installed in timing cover.
  3. Install cover and new gasket. Tighten fasteners to 28 N.m (250 in. lbs.).
    NOTE:

    The large lifting stud is tightened to 55 N.m (40 ft. lbs.).

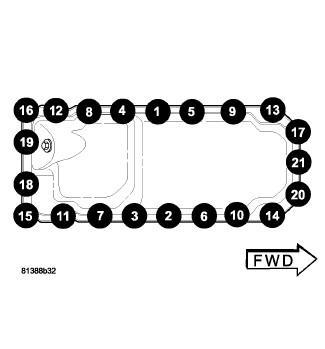

    Fig 2: Oil Pan Removal/Tightening Sequence
    GC0082910Courtesy of CHRYSLER GROUP, LLC
  4. Install the oil pan and pick up tube. Refer to PAN, OIL, INSTALLATION, 5.7L .
  5. Install the A/C compressor.
  6. Install the generator.
  7. Install power steering pump.
  8. Install the dipstick support bolt.
  9. Install the thermostat housing.
  10. Install crankshaft damper. Refer to DAMPER, VIBRATION, INSTALLATION, 5.7L .
  11. Install accessory drive belt tensioner assembly and both idler pulleys.
  12. Install radiator lower hose.
  13. Install both heater hoses.
  14. Install the cooling module.
  15. Install the accessory drive belt.
  16. Install the coolant bottle and washer bottle.
  17. Install the upper radiator hose.
  18. Install the air cleaner assembly.
  19. Fill cooling system.
  20. Refill engine oil.
  21. Connect the battery negative cable.
