Solenoid, Multiple Displacement : Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

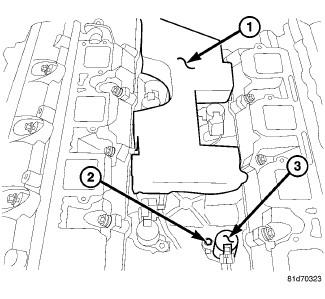

Fig 1: Intake Manifold Foam Insulator Pad, MDS Solenoids & Bolts

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL, 5.7L .
Remove foam insulator pad (1).

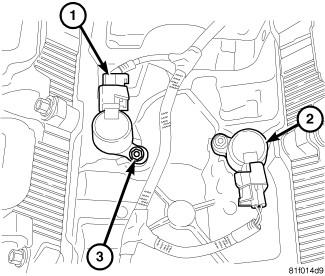

Fig 2: MDS Solenoid Connector
Courtesy of CHRYSLER GROUP, LLC
Remove the Multiple Displacement Solenoid (MDS) (2) electrical connector(s) (1).
Remove the MDS solenoid (2) retaining bolt(s) (3).

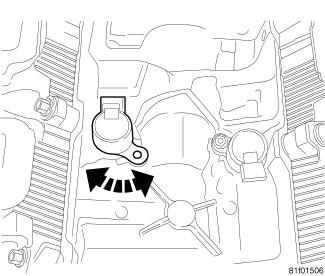

Fig 3: MDS Solenoid Removal
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not try to pry the solenoid out. This could lead to breakage and contamination of the lubrication system.
Lightly tap on the MDS solenoid(s) with a rubber mallet. Rotate the MDS solenoid(s) from side to side to break the seal.
Remove the MDS solenoid(s).
