Section 345 (Rear Axle - 10 1/2 Aa - 2500 Hd & 3500 Hd): Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

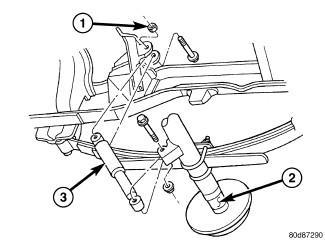

Fig 1: Shock Absorber
GC0107769Courtesy of CHRYSLER GROUP, LLC
  1. With vehicle in neutral, position vehicle on hoist.
  2. Position a lift under axle and secure lift to the axle.
  3. Remove all brake components.
  4. Remove axle vent hose.
  5. Mark propeller shaft and companion flange for installation alignment reference.
  6. Remove propeller shaft.
  7. Remove shock absorbers (3) from axle (2).
    Fig 2: Rear Axle & U-Bolts
    GC0107770Courtesy of CHRYSLER GROUP, LLC
  8. Remove U-bolts (5) from axle.
  9. Remove axle from the vehicle.
