Bearing, Differential Side: Installation: Installation
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

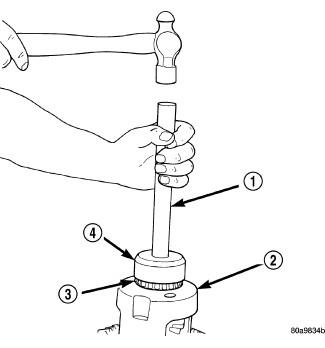

- Install open and Trac-Rite differential case (2) bearings (3) with Installer (special tool #8956, Installer, Differential Bearing) (4) and Handle (special tool #C-4171, Driver Handle, Universal) (1).
- Install differential case into housing.
