Bearing, Differential Side: Installation: Installation
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

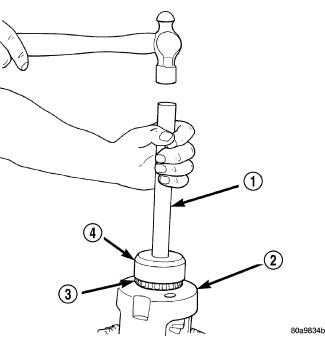

- Set differential case (2) on Plug (special tool #8888, Plug, Differential Bearing).
- Install differential case bearings (3) with Installer (special tool #8881, Installer, Bearing) (4) and Handle (special tool #C-4171, Driver Handle, Universal) (1).
- Install differential case into housing.
