Seat Back, Rear: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

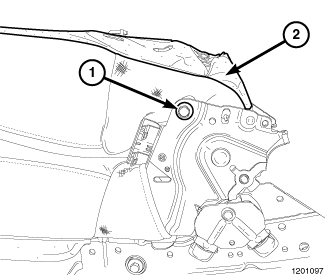

Fig 1: Side Shield Screws

Courtesy of CHRYSLER GROUP, LLC

Remove the rear seat assembly. Refer to SEAT, REAR, REMOVAL or SEAT, MEGA CAB REAR, REMOVAL .
Remove the screws (1) and remove the side shields (2).

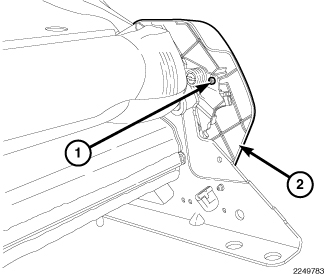

Fig 2: Seat Back Assembly & Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (1).
Remove the seat back assembly (2).
