Shock Absorber, Suspension: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

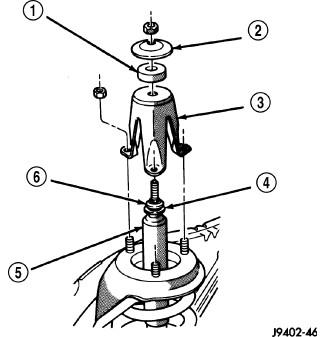

Fig 1: Shock Absorber And Bracket

Courtesy of CHRYSLER GROUP, LLC

1 - GROMMET

2 - RETAINER

3 - BRACKET

4 - RETAINER

5 - SHOCK

6 - GROMMET

Position the lower retainer (4) and grommet (6) on the upper stud. Insert the shock absorber (5) through the spring from engine compartment.

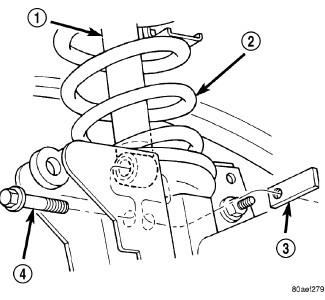

Fig 2: Shock Absorber Axle Mount

Courtesy of CHRYSLER GROUP, LLC

1 - SHOCK

2 - SPRING

3 - FLAG NUT

4 - SHOCK BOLT

Install the lower bolt (4) and tighten to specifications. Refer to FRONT, LINK AND COIL, SPECIFICATIONS .

Fig 3: Shock Absorber And Bracket

Courtesy of CHRYSLER GROUP, LLC

1 - GROMMET

2 - RETAINER

3 - BRACKET

4 - RETAINER

5 - SHOCK

6 - GROMMET

Install the upper shock bracket (3) and three nuts and tighten nuts to specifications. Refer to FRONT, LINK AND COIL, SPECIFICATIONS .
Install upper grommet (1) and retainer (2). Install upper shock nut and tighten to specifications. Refer to FRONT, LINK AND COIL, SPECIFICATIONS .
