2500, 3500

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the wheel and tire assembly.
    Fig 1: Hub Extension
    GC0107537Courtesy of CHRYSLER GROUP, LLC
  3. Remove the hub extension (1) mounting nuts and remove the extension from the rotor if equipped.
    Fig 2: Hub Nut Cotter Pin
    GC0107538Courtesy of CHRYSLER GROUP, LLC
  4. Remove the brake caliper. Refer to CALIPER, DISC BRAKE, REMOVAL .
  5. Remove the cotter pin (2) and the hub nut (1) from the axle shaft.
  6. Remove the caliper adapter. Refer to ADAPTER, DISC BRAKE CALIPER, REMOVAL .
  7. Remove the disc brake rotor. Refer to ROTOR, BRAKE, REMOVAL .
  8. Disconnect the wheel speed sensor wire.
    Fig 3: Hub/Bearing Bolts
    GC0107541Courtesy of CHRYSLER GROUP, LLC
  9. Loosen the hub/bearing 4 mounting bolts (1).

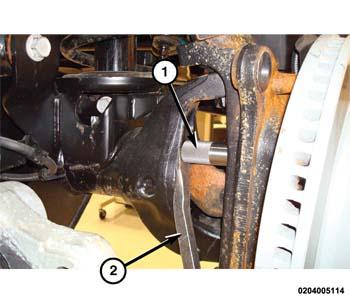

    Fig 4: Special Tool, Pry Bar & Hub/Bearing Mounting Bolt
    GC0155200Courtesy of CHRYSLER GROUP, LLC
  10. Using (special tool #10415, Remover, Front Hub) and a pry bar (2), place the tool (1) onto the hub/bearing mounting bolts to separate the hub/bearing from the knuckle assembly.
  11. Remove the hub/bearing 4 mounting bolts and remove the hub/bearing.
